PM Series

PM Series

Panel Mount PCAP Touch Monitors

Industrial panel-mount projected capacitive touch displays. IP-65 front panel, VGA/HDMI input, USB touch interface. Available 12.1″ – 21.5″.

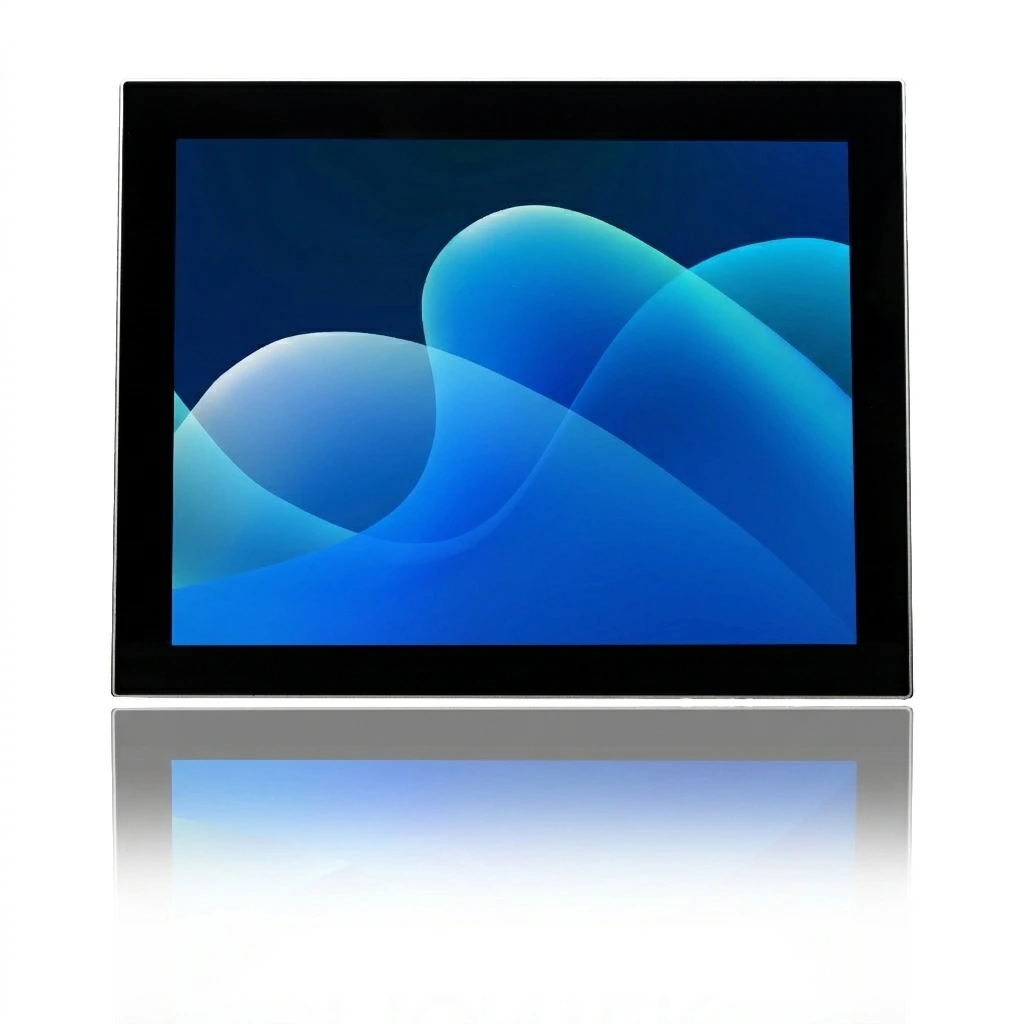

Montek Panel Mount 12.1-inch PCAP Touch Monitor Montek Panel Mount 12.1-inch PCAP Touch Monitor 4 : 3
P/N · PM1200S01

12.1″ Panel Mount

1024×768 XGA 500 cd/m² −10°C ~ 50°C IP-65
Resolution1024 × 768 (XGA)
Brightness500 cd/m² std · 1,000 cd/m² high-bright
Contrast1000:1 (Typ.)
Viewing Angle89° / 89° / 89° / 89°
Response Time25 ms (Typ.)
BacklightWLED, integrated driver · ≥30,000 hrs
Outline Dim.306.8 × 235.12 × 54.5 mm
Weight3.1 kg
VESA Mount75×75 mm
MountingPanel / Wall / Desktop / VESA arm
Video InputVGA / HDMI
TouchPCAP · USB Interface
OSD5 Keys
Operating Temp−10°C ~ 50°C
PowerDC 12V · AC 100~240V / DC 36V adapter opt.
GlassAG / AR
CertificationsCE · FCC · RoHS · REACH
Get Quote

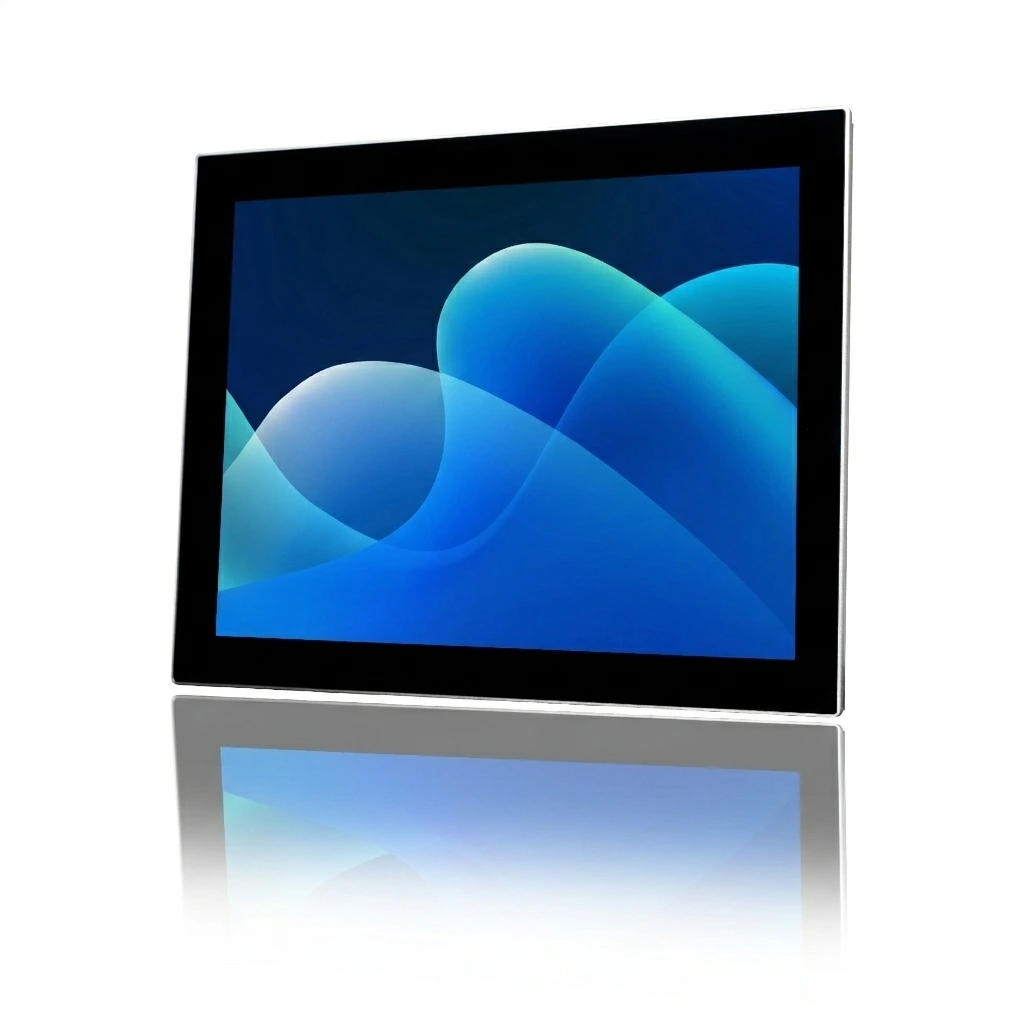

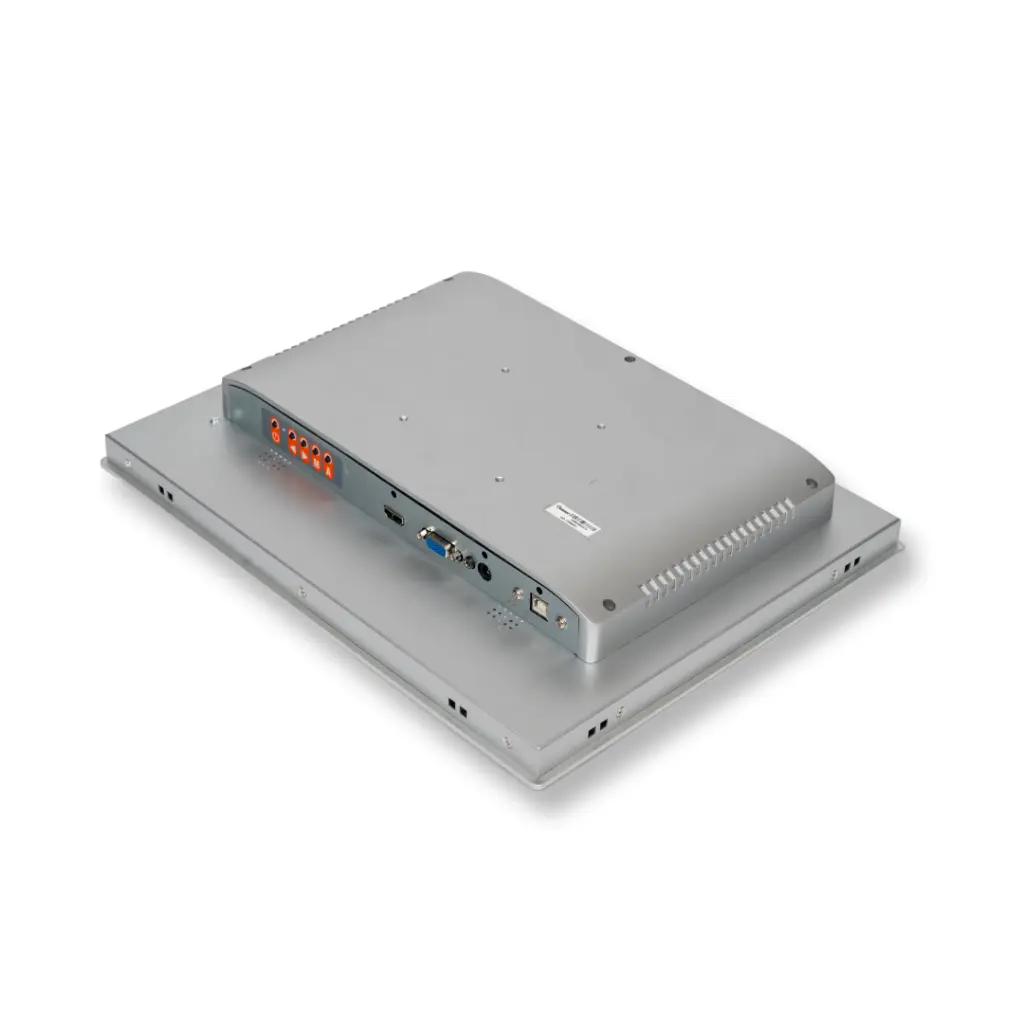

Montek Panel Mount 15-inch PCAP Touch Monitor Montek Panel Mount 15-inch PCAP Touch Monitor 4 : 3
P/N · PM1500S01

15″ Panel Mount

1024×768 XGA 350 cd/m² 0°C ~ 50°C IP-65
Resolution1024 × 768 (XGA)
Brightness350 cd/m² std · 1,000 cd/m² high-bright
Contrast800:1 (Typ.)
Viewing Angle80° / 80° / 70° / 80° (TN panel)
Response Time8 ms (Typ.)
BacklightWLED, integrated driver · ≥50,000 hrs
Outline Dim.354.3 × 278.3 × 54.5 mm
Weight3.6 kg
VESA Mount75×75 mm
MountingPanel / Wall / Desktop / VESA arm
Video InputVGA / HDMI
TouchPCAP · USB Interface
OSD5 Keys
Operating Temp0°C ~ 50°C
PowerDC 12V · AC 100~240V / DC 36V adapter opt.
GlassAG / AR
CertificationsCE · FCC · RoHS · REACH
Get Quote

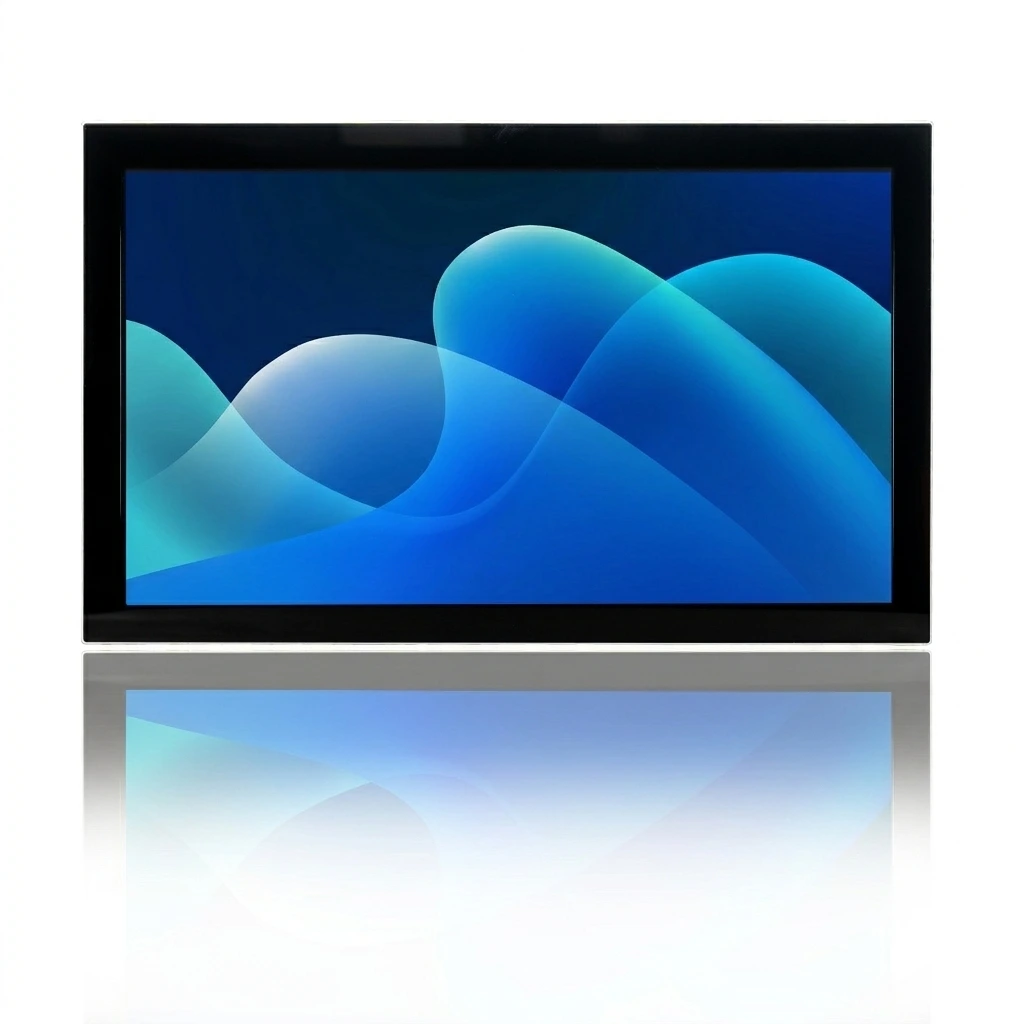

Montek Panel Mount 15.6-inch PCAP Touch Monitor Montek Panel Mount 15.6-inch PCAP Touch Monitor 16 : 9
P/N · PM1560S01

15.6″ Panel Mount

1920×1080 FHD 250 cd/m² −10°C ~ 50°C IP-65
Resolution1920 × 1080 (FHD)
Brightness250 cd/m² std · 1,000 cd/m² high-bright
Contrast800:1 (Typ.)
Viewing Angle85° / 85° / 85° / 85°
Response Time25 ms (Typ.)
BacklightWLED, integrated driver · ≥30,000 hrs
Outline Dim.392.6 × 241.7 × 54.5 mm
Weight3.7 kg
VESA Mount75×75 mm
MountingPanel / Wall / Desktop / VESA arm
Video InputVGA / HDMI
TouchPCAP · USB Interface
OSD5 Keys
Operating Temp−10°C ~ 50°C
PowerDC 12V · AC 100~240V / DC 36V adapter opt.
GlassAG / AR
CertificationsCE · FCC · RoHS · REACH
Get Quote
Montek Panel Mount 17-inch PCAP Touch Monitor Montek Panel Mount 17-inch PCAP Touch Monitor 5 : 4
P/N · PM1700S01

17″ Panel Mount

1280×1024 SXGA 250 cd/m² −10°C ~ 50°C IP-65
Resolution1280 × 1024 (SXGA)
Brightness250 cd/m² std · 1,000 cd/m² high-bright
Contrast1000:1 (Typ.)
Viewing Angle85° / 85° / 80° / 80° (TN panel)
Response Time5 ms Tr+Td (Typ.)
BacklightWLED 9S4P, external driver req. · ≥30,000 hrs
Outline Dim.386.3 × 321.3 × 54.5 mm
Weight4.6 kg
VESA Mount75×75 mm
MountingPanel / Wall / Desktop / VESA arm
Video InputVGA / HDMI
TouchPCAP · USB Interface
OSD5 Keys
Operating Temp−10°C ~ 50°C
PowerDC 12V · AC 100~240V / DC 36V adapter opt.
GlassAG / AR
CertificationsCE · FCC · RoHS · REACH
Get Quote

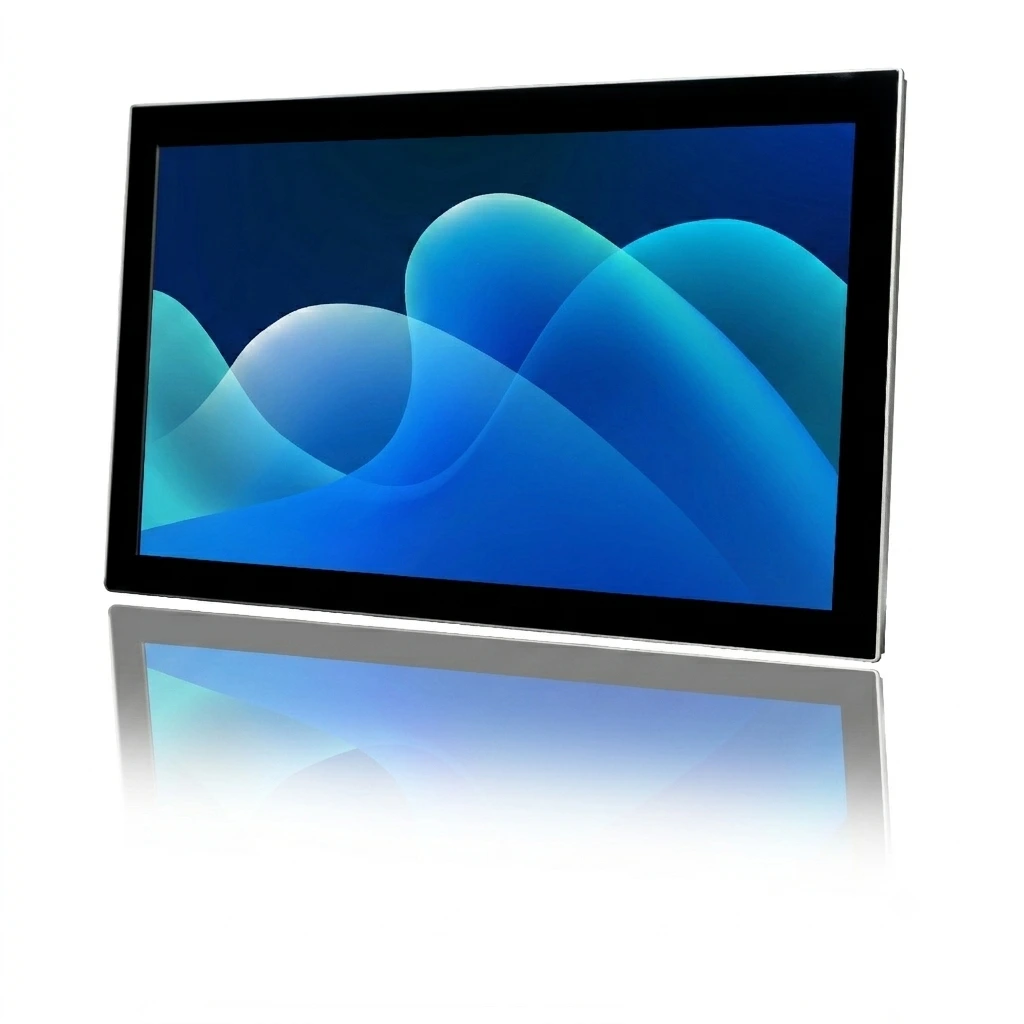

Montek Panel Mount 18.5-inch PCAP Touch Monitor Montek Panel Mount 18.5-inch PCAP Touch Monitor 16 : 9
P/N · PM1850S01

18.5″ Panel Mount

1920×1080 FHD 500 cd/m² −10°C ~ 50°C IP-65
Resolution1920 × 1080 (FHD)
Brightness500 cd/m² std · 1,000 cd/m² high-bright
Contrast1200:1 (Typ.)
Viewing Angle85° / 85° / 85° / 85°
Response Time30 ms (Typ.)
BacklightWLED 14S4P, integrated driver · ≥30,000 hrs
Outline Dim.460.3 × 282.4 × 54.5 mm
Weight4.5 kg
VESA Mount75×75 mm
MountingPanel / Wall / Desktop / VESA arm
Video InputVGA / HDMI
TouchPCAP · USB Interface
OSD5 Keys
Operating Temp−10°C ~ 50°C
PowerDC 12V · AC 100~240V / DC 36V adapter opt.
GlassAG / AR
CertificationsCE · FCC · RoHS · REACH
Get Quote
Montek Panel Mount 19-inch PCAP Touch Monitor Montek Panel Mount 19-inch PCAP Touch Monitor 5 : 4
P/N · PM1900S01

19″ Panel Mount

1280×1024 SXGA 250 cd/m² −10°C ~ 50°C IP-65
Resolution1280 × 1024 (SXGA)
Brightness250 cd/m² std · 1,000 cd/m² high-bright
Contrast1000:1 (Typ.)
Viewing Angle80° / 80° / 80° / 80° (TN panel)
Response Time14 ms (Typ.)
BacklightWLED, integrated driver · ≥30,000 hrs
Outline Dim.428.0 × 351.65 × 54.5 mm
Weight4.8 kg
VESA Mount75×75 mm
MountingPanel / Wall / Desktop / VESA arm
Video InputVGA / HDMI
TouchPCAP · USB Interface
OSD5 Keys
Operating Temp−10°C ~ 50°C
PowerDC 12V · AC 100~240V / DC 36V adapter opt.
GlassAG / AR
CertificationsCE · FCC · RoHS · REACH
Get Quote
Montek Panel Mount 21.5-inch PCAP Touch Monitor Montek Panel Mount 21.5-inch PCAP Touch Monitor 16 : 9
P/N · PM2150S01

21.5″ Panel Mount

1920×1080 FHD 250 cd/m² 0°C ~ 50°C IP-65
Resolution1920 × 1080 (FHD)
Brightness250 cd/m² std · 1,000 cd/m² high-bright
Contrast1000:1 (Typ.)
Viewing Angle89° / 89° / 89° / 89°
Response Time25 ms (Typ.)
BacklightWLED, integrated driver · ≥50,000 hrs
Outline Dim.527.8 × 321.0 × 54.5 mm
Weight5.7 kg
VESA Mount75×75 mm
MountingPanel / Wall / Desktop / VESA arm
Video InputVGA / HDMI
TouchPCAP · USB Interface
OSD5 Keys
Operating Temp0°C ~ 50°C
PowerDC 12V · AC 100~240V / DC 36V adapter opt.
GlassAG / AR
CertificationsCE · FCC · RoHS · REACH
Get Quote

Need a Custom Configuration?

We can adapt a standard monitor with custom LCD, touch, cover glass, bonding, brightness, interface, or mechanical options.
